AV2040-2 SATCOM ANTENNA

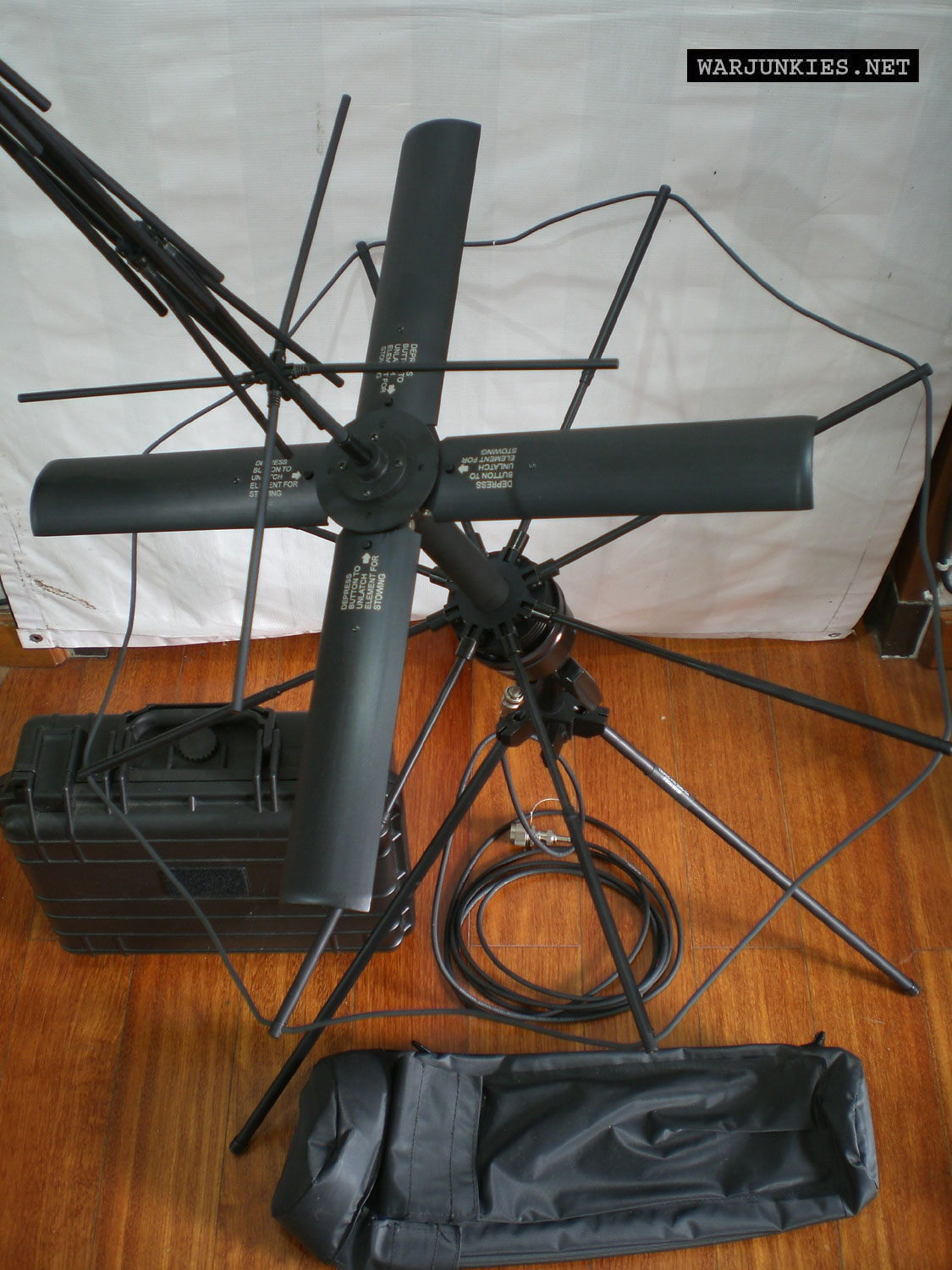

The AV 2040-2 SATCOM ANTENNA is a foldable, manpack, high gain, UHF Satellite Communication (SATCOM) antenna designed for special missions where portability and high gain are required.

NSN: 5985-01-335-2587

AV2040 Specifications:

Frequency 240-400 MHz
VSWR 1.5:1
Polarization Right Hand Circular
Gain AV 2040-3 +7.0 dBic, 240-400 MHz
AV 2040-2 +11.0 dBic, 240-318 MHz
AV 2040-1 +9.0 dBic, 240-400 MHz
Power Handling 200 Watts CW
Axial Ratio 3 dB
Weight 6.5 pounds
Connector BNC Male
Finish Black
Military P/N (AV2040-3) NSN 5985-01-149-2576


  • 240 - 318 MHz
  • +11.0 dBic
  • 6.5lbs
  • Fast Simple Deployment
  • 200W
  • NATO Codified
