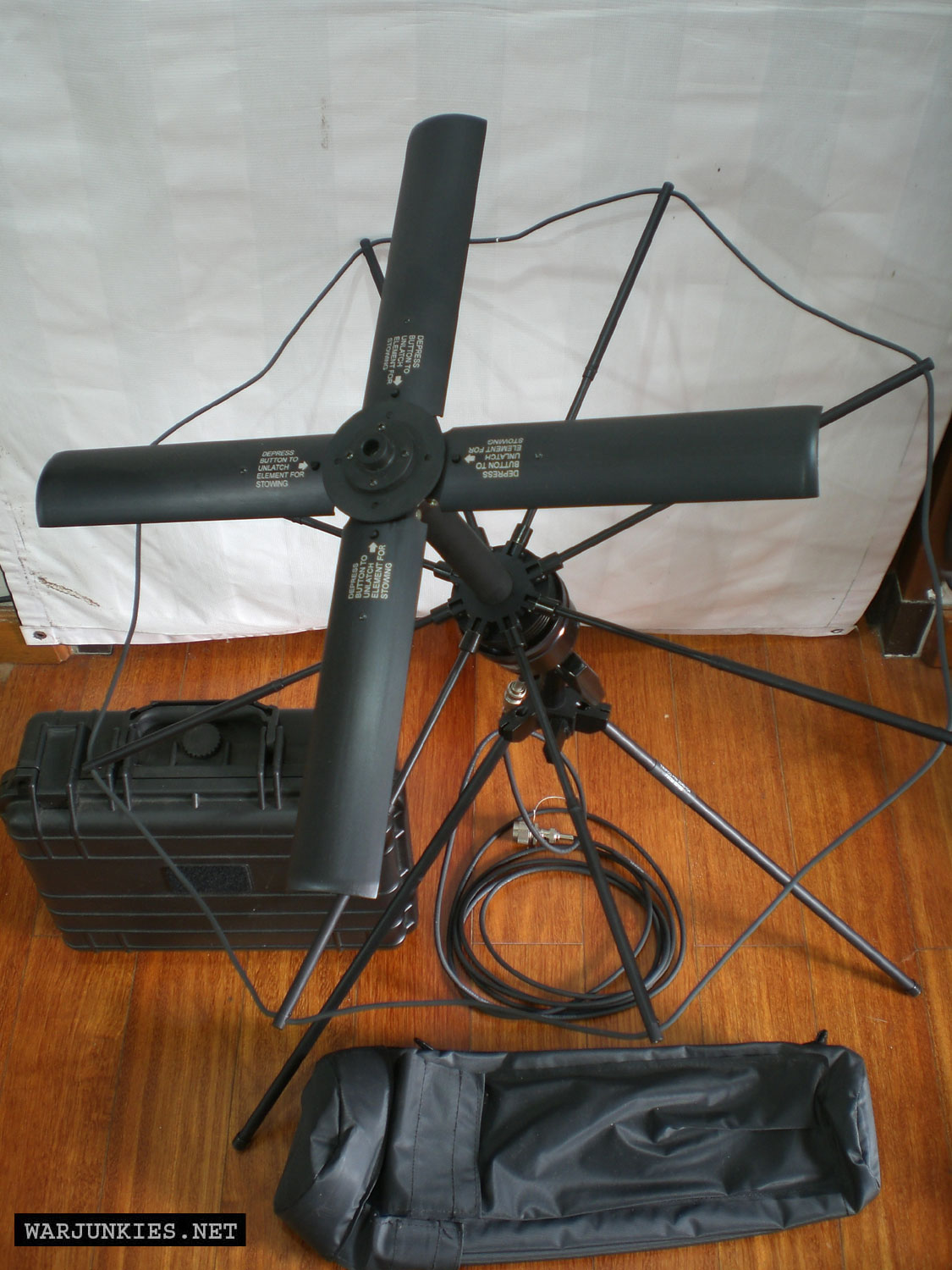

Click on the image above to get the actual size (full-resolution). AV2040-2 SATCOM ANTENNA The AV 2040-2 SATCOM ANTENNA is a foldable, manpack, high gain, UHF Satellite Communication (SATCOM) antenna designed for special missions where portability and high gain are required. NSN: 5985-01-335-2587 AV2040 Specifications: Frequency 240-400 MHz VSWR 1.5:1 Polarization Right Hand Circular Gain AV 2040-3 +7.0 dBic, 240-400 MHz AV 2040-2 +11.0 dBic, 240-318 MHz AV 2040-1 +9.0 dBic, 240-400 MHz Power Handling 200 Watts CW Axial Ratio 3 dB Weight 6.5 pounds Connector BNC Male Finish Black Military P/N (AV2040-3) NSN 5985-01-149-2576
|
